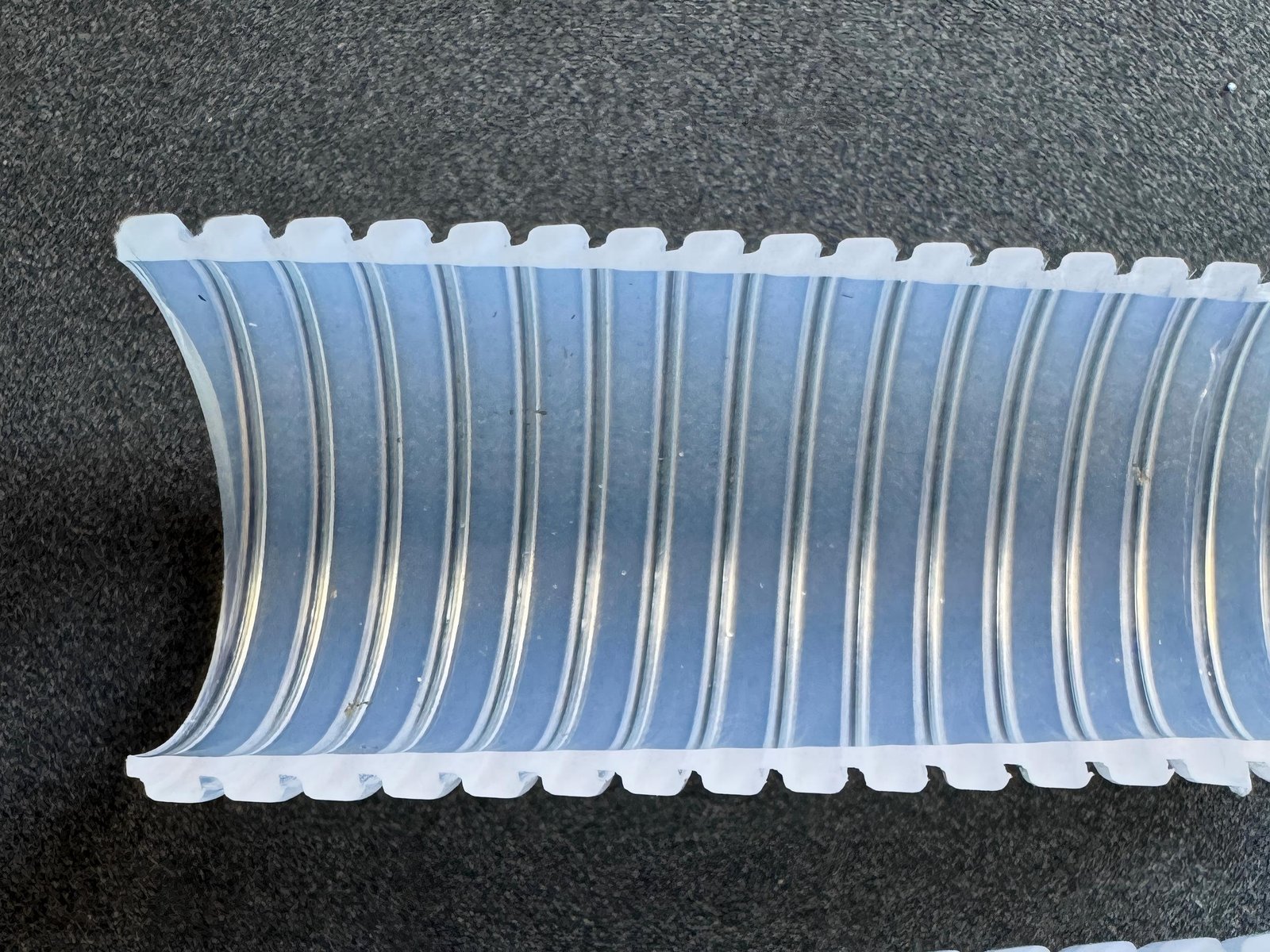

Teflon Machinery’s Automatic Smooth Bore Corrugated PTFE Hose Machine is the heart of a comprehensive turnkey production line, engineered to produce high-performance PTFE hoses featuring a smooth inner bore and corrugated outer wall. This innovative design—often referred to as “inner flat, outer wave” PTFE tubing—ensures optimal fluid flow by preventing liquid accumulation and residue buildup during conveyance. Built for efficiency, precision, and durability, our machine supports continuous, high-speed operation with minimal supervision, making it an essential asset for manufacturers aiming to upscale in challenging 24/7 industrial settings.

Master the production of inner flat outer corrugated PTFE hoses with a robust system that combines advanced automation and reliable engineering, delivering hoses that excel in demanding applications where hygiene, chemical resistance, and flow efficiency are critical.

Transform Your Manufacturing with Automation

In a market demanding superior quality and operational efficiency, Teflon Machinery’s automatic smooth bore corrugated PTFE hose machine tackles key production hurdles by streamlining the specialized corrugation process. By automating intricate forming steps, it minimizes variability, cuts labor expenses, and produces premium hoses that adhere to strict standards in industries like chemicals, pharmaceuticals, and food processing. The unique inner flat design eliminates dead zones where fluids could pool, reducing contamination risks and enhancing overall system performance.

The Essence of the Inner Flat Outer Corrugated PTFE Hose Production Process

Our machine refines the PTFE hose corrugation process through a precisely controlled sequence tailored for creating hoses with a smooth internal surface and annular corrugated exterior:

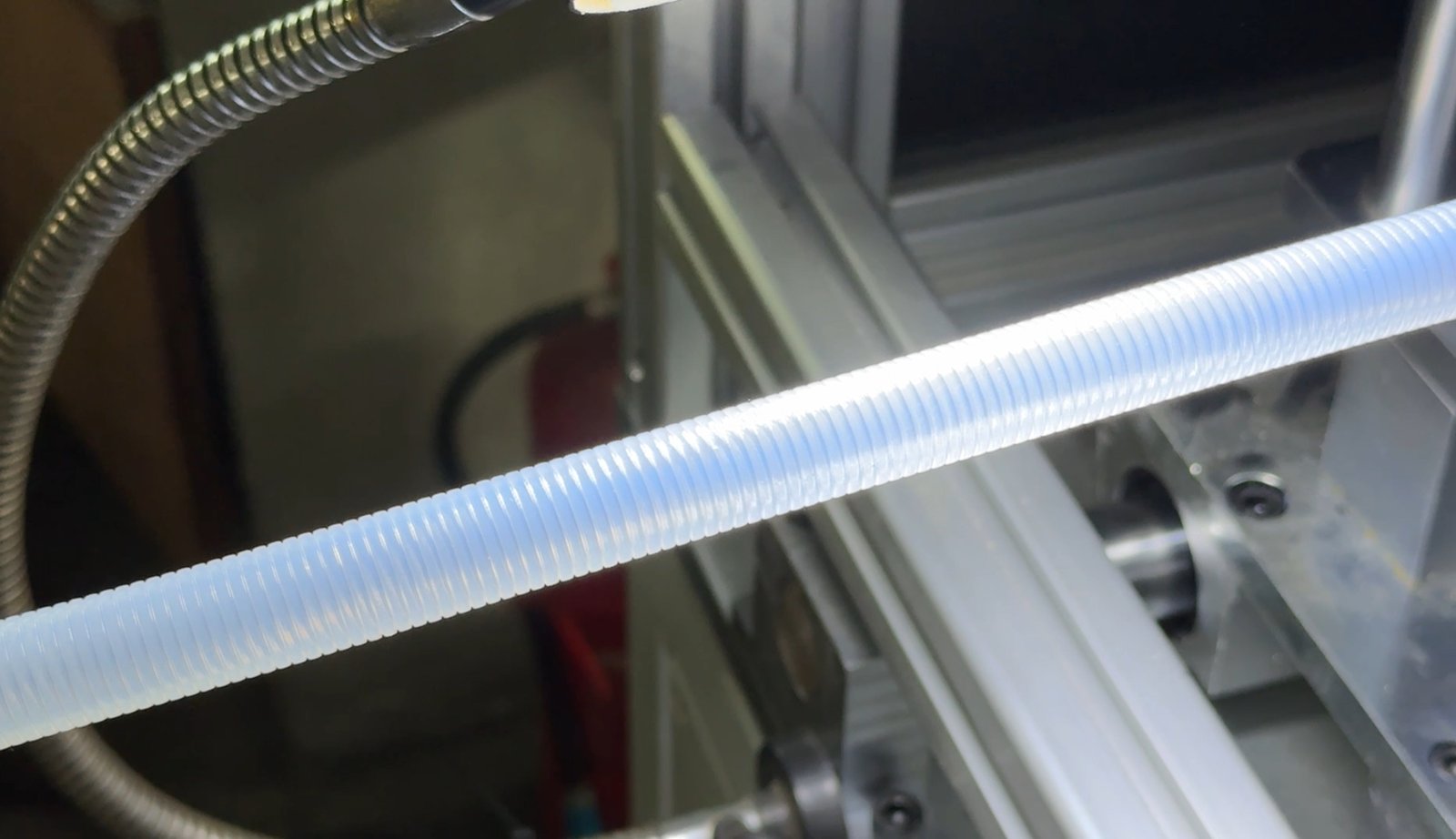

1. Heating & Softening: A pre-extruded smooth-bore PTFE tube is loaded onto a high-precision mandrel and advanced through a targeted heating chamber. This softens the material to the precise temperature needed for external forming without altering the inner smoothness.
2. External Molding & Corrugation: The heated tube engages with specialized forming molds that apply controlled compression to create uniform outer convolutions or waves. This step ensures the external corrugations provide flexibility and kink resistance while preserving the flat inner wall for seamless fluid passage.
3. Cooling & Setting: An integrated cooling system rapidly stabilizes the hose structure, locking in dimensional accuracy, wall integrity, and the critical smooth bore to prevent any fluid retention or buildup.

This method yields hoses with consistent pitch, minimal wall thickness variation, and superior drainage properties, making them ideal for applications where residue-free conveyance is paramount—such as preventing liquid pooling in sanitary or corrosive fluid transfers.

Key Features & Advantages

• Fully Automated Control: Featuring a state-of-the-art PLC system (Siemens/Mitsubishi) and intuitive HMI touchscreen for effortless setup, real-time oversight, and automated adjustments.
• High-Speed Efficiency: Servo-driven components enable smooth, rapid production rates, boosting output while maintaining precision in corrugation profiles.
• Durable Precision Molds: Made from high-strength alloy steel for extended lifespan; interchangeable for various outer wave designs without compromising inner bore flatness.
• Quality Assurance: Advanced temperature and pressure controls ensure defect-free hoses, reducing scrap and ensuring compliance with hygiene standards.
• Heavy-Duty Build: Sturdy steel framework for vibration-resistant operation during extended runs.
• End-to-End Integration: Seamlessly connects with extruders, braiders, and finishing equipment in a full smooth bore corrugated PTFE hose production line from Teflon Machinery.

Technical Specifications

Note: Customizations available to align with your specific manufacturing needs.

Diverse Applications for Inner Flat Outer Corrugated PTFE Hoses

The specialized hoses manufactured by our machine are vital in sectors where fluid retention must be avoided:

• Chemical Processing: Transfer of aggressive chemicals without residue buildup, ensuring safety and purity.
• Pharmaceutical & Medical: Sterile fluid lines for drugs and biologics, with smooth bores preventing contamination.
• Food & Beverage: Hygienic conveyance of liquids, compliant with FDA and sanitary standards to avoid pooling.
• Automotive: Fuel and coolant systems requiring flexibility and clean flow.
• Industrial: High-pressure steam or solvent lines where external corrugations add durability without internal traps.

Collaborate with Teflon Machinery for your important project

Beyond equipment supply, Teflon Machinery offers holistic solutions. Our engineering experts assist in designing, installing, and optimizing a complete inner flat outer corrugated PTFE hose production line, including training and maintenance support to maximize your investment.

Ready to Eliminate Fluid Accumulation in Your Hose Production?

Contact Teflon Machinery now for a personalized quote or expert advice. Email info@teflonmachinery.com or submit an inquiry to start enhancing your operations with our advanced smooth bore corrugated PTFE hose technology.
