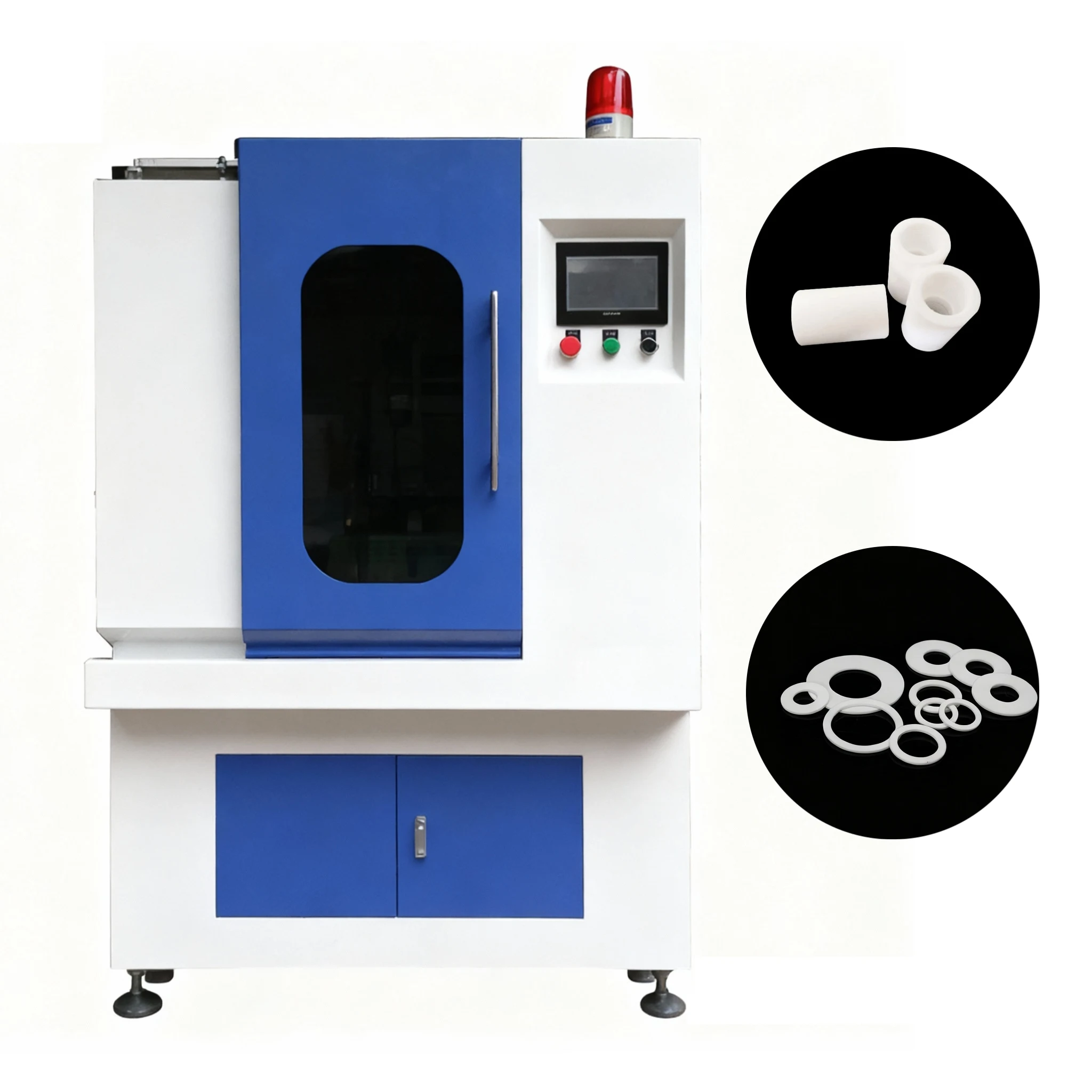

Automatic PTFE Compression Molding Machine for Seals & Gaskets

Teflon Machinery introduces the state-of-the-art Automatic PTFE Compression Molding Machine, engineered for high-precision manufacturing of PTFE seals and gaskets. This advanced Teflon Compression Molding Machine is designed to deliver consistent quality and high output, making it an indispensable asset for your production line. Experience superior efficiency and reliable performance with our automated Hydraulic PTFE Press system, specifically developed for demanding industrial applications.

Our Automatic PTFE Molding Machine streamlines the entire production process, from powder filling to the final product ejection. This fully automated system minimizes manual intervention, leading to significant reductions in labor costs and potential for human error. The result is a highly efficient and economical manufacturing solution, especially for high-volume production of PTFE components.

The core of our machine is a robust Hydraulic PTFE Press that applies consistent and precise pressure, which is critical for achieving uniform density and optimal mechanical properties in the final product. The molding process, which includes compression, sintering, and cooling, is carefully controlled to produce dimensionally stable and flawless PTFE seals and gaskets. This PTFE Seal Molding Machine is also versatile, capable of handling both virgin and filled PTFE compounds, allowing for the production of parts with enhanced characteristics like improved compressive strength and wear resistance.

Key Features:

• Fully Automatic Operation: Automated powder feeding, compression, and product ejection for continuous, 24-hour production.
• High Precision and Consistency: Advanced PLC control and a servo-hydraulic system ensure precise pressure and temperature control, resulting in products with tight tolerances and uniform density.
• Enhanced Efficiency: Optimized cycle times lead to a significant increase in production output compared to manual or semi-automatic machines.
• Robust Construction: Built with a heavy-duty steel frame for exceptional stability and long-term durability in industrial environments.
• User-Friendly Interface: Equipped with a touch screen HMI for easy operation, parameter setting, and real-time monitoring of the production process.
• Versatility: The PTFE Gasket Molding Machine is designed with interchangeable molds to produce a wide variety of seals, gaskets, O-rings, and other custom components.
• Cost-Effective: Reduces material waste and labor costs, providing a quick return on investment.

The PTFE Compression Molding Process:

The manufacturing process with our Teflon Compression Molding Machine involves several key stages:

1. Material Preparation: High-quality PTFE powder, either virgin or blended with fillers, is loaded into the machine’s automatic feeding system.
2. Mold Filling: A precise amount of PTFE powder is automatically dispensed into the mold cavity to ensure product consistency.
3. Compression: The Hydraulic PTFE Press applies high pressure to the powder at ambient temperature, compacting it into a solid pre-form.
4. Sintering: The pre-formed part is then heated in a furnace to a temperature above PTFE’s melting point (around 360-380°C), causing the particles to fuse together into a solid, durable piece.
5. Cooling: The finished part is carefully cooled to ensure dimensional stability and prevent internal stresses.

This meticulous process ensures that the final PTFE seals and gaskets possess exceptional chemical resistance, high-temperature tolerance, and a low coefficient of friction, making them suitable for a wide range of critical applications.

Applications:

Our Automatic PTFE Seal Molding Machine and PTFE Gasket Molding Machine are ideal for producing high-performance components for various industries, including:

• Aerospace and Automotive
• Chemical Processing
• Pharmaceutical and Medical
• Food and Beverage
• Electronics
• Industrial Machinery

Technical Specifications:

For more detailed specifications or to discuss your specific application needs, please visit our contact page at https://teflonmachinery.com/contact-us/ or email us at info@teflonmachinery.com.
